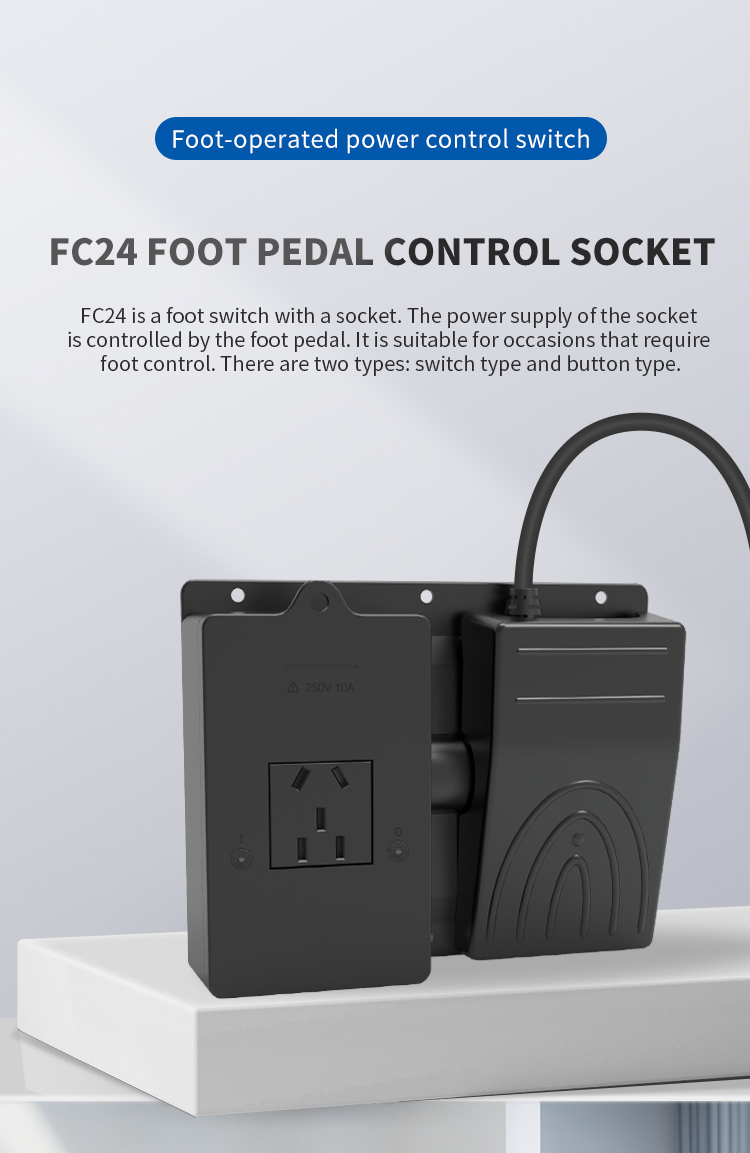

1. Product Overview

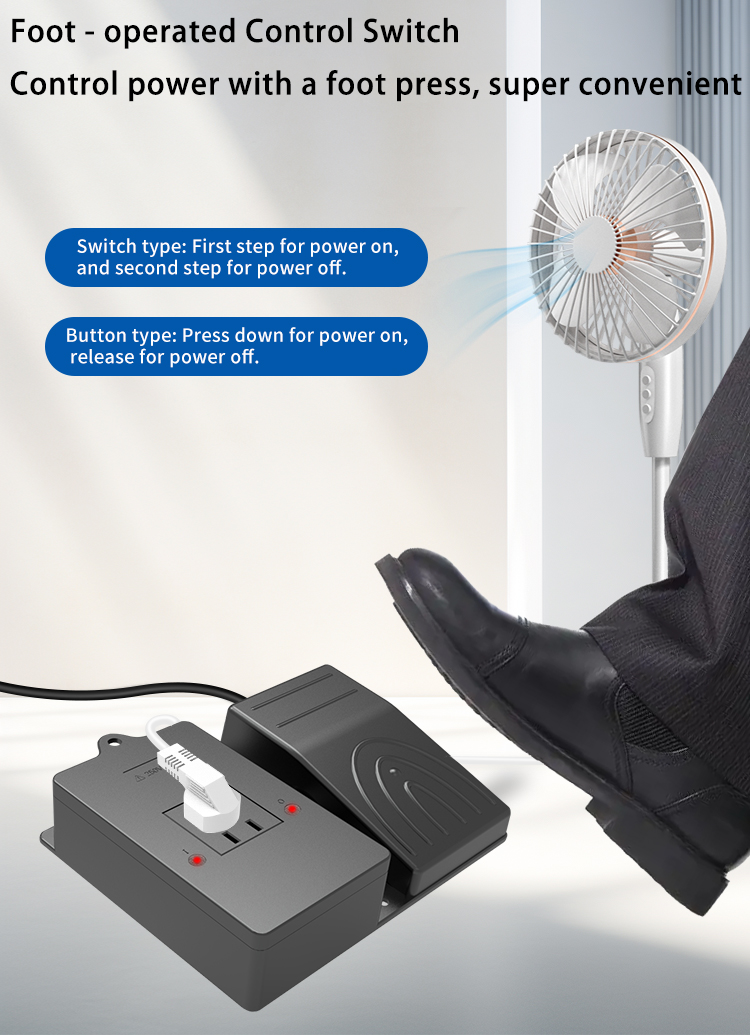

This product is a power controlled switch socket.
The power is controlled by stepping. Step once to turn it on and step again to turn it off, without the need for manual touching、
It can be used in medical, industrial or scenarios requiring hand foot coordination. It controls the power supply of equipment more conveniently and safely, simplifies the operation process, improves work efficiency, and provides a flexible solution
for equipment power management.
❗️Important FC24 Inspection Instructions❗️
First, without plugging in any devices, check whether the indicator lights are functioning correctly: When the power is turned on, the “i” light should come on; when the pedal is pressed, the “O” light should come on. This indicates that the device is generally in good working order.
After confirming that the indicators are working correctly, it is best to plug in a low-power device to test if it works. We do not recommend plugging in devices that exceed the device’s rated power, as this may cause the fuse to blow.

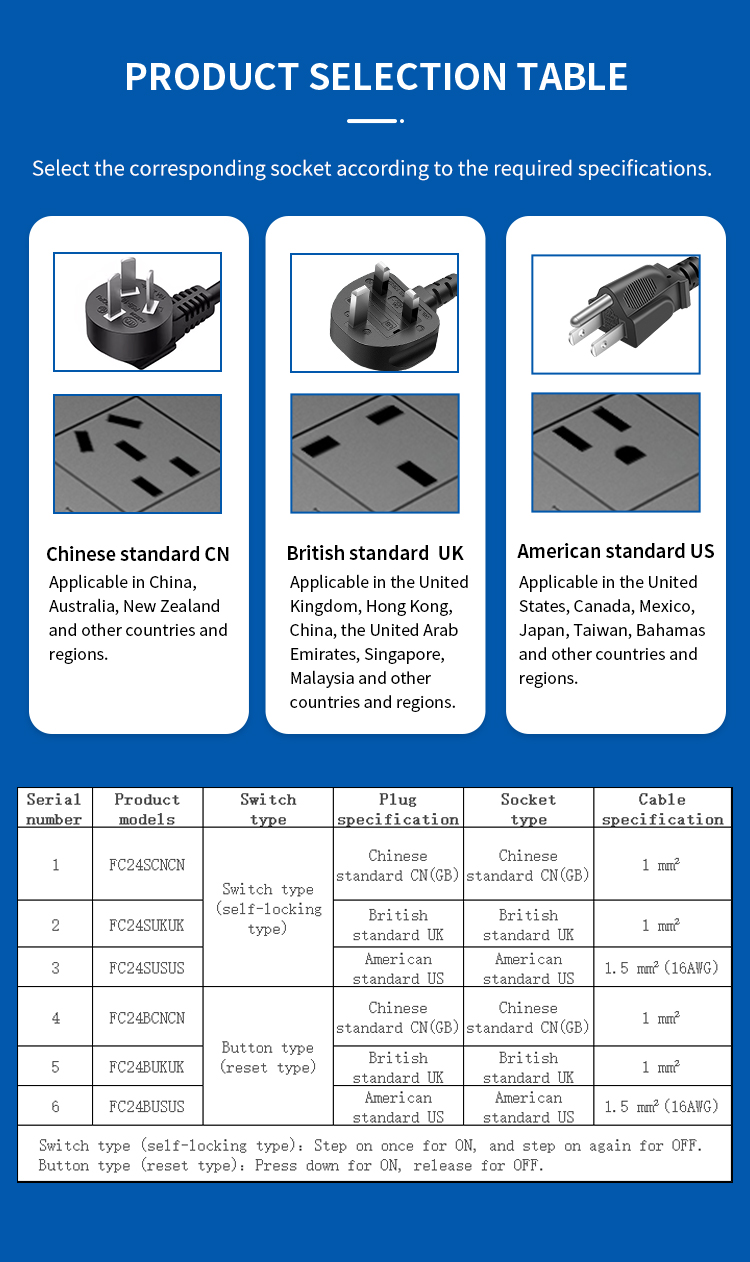

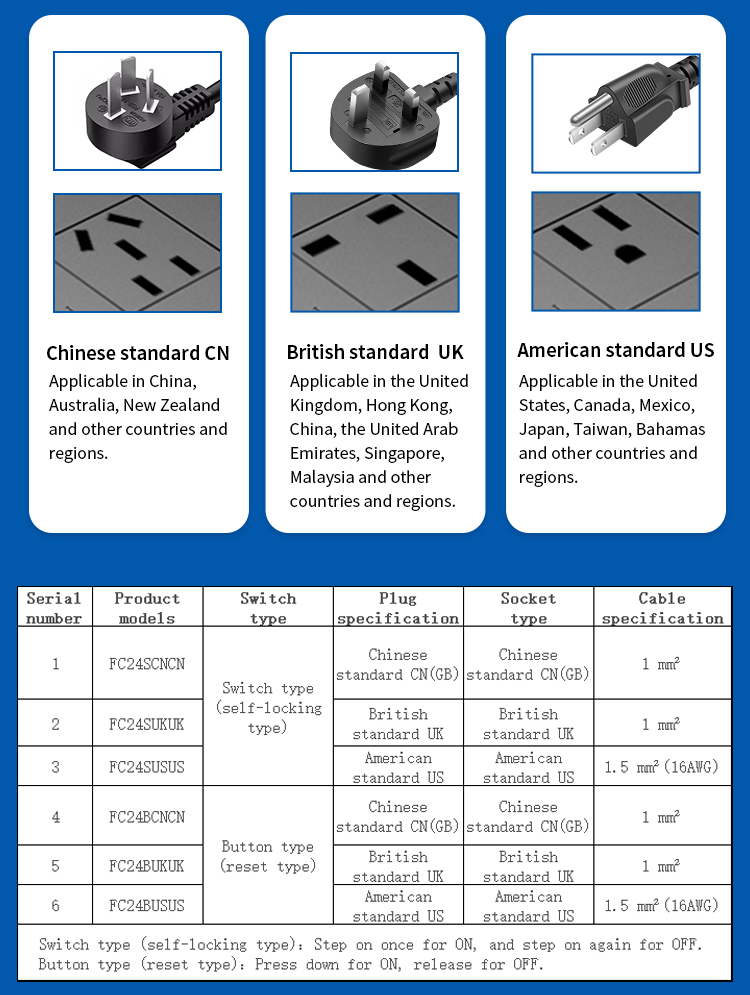

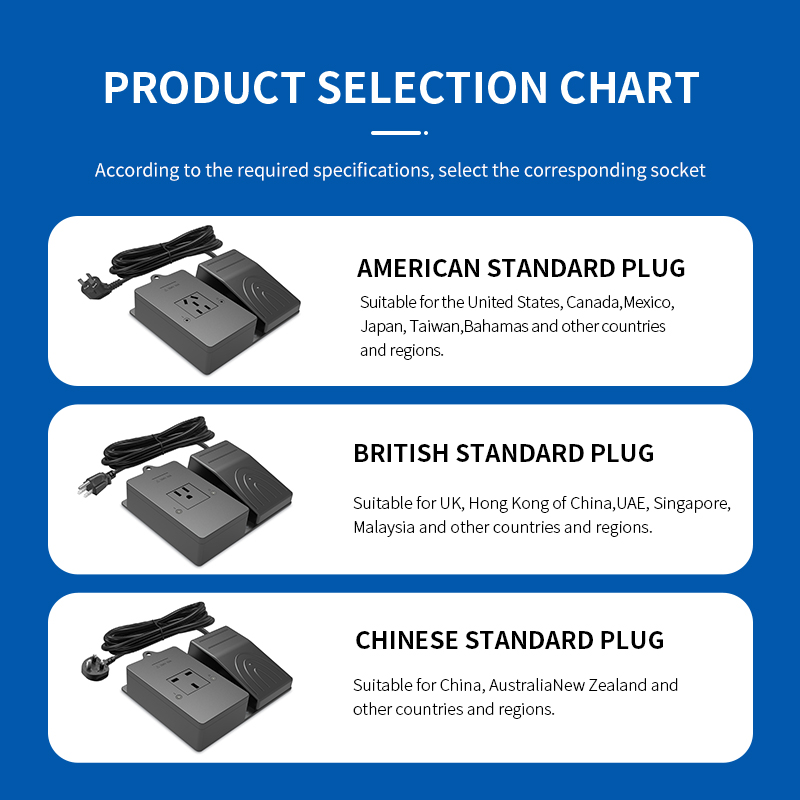

2. Selection Instructions

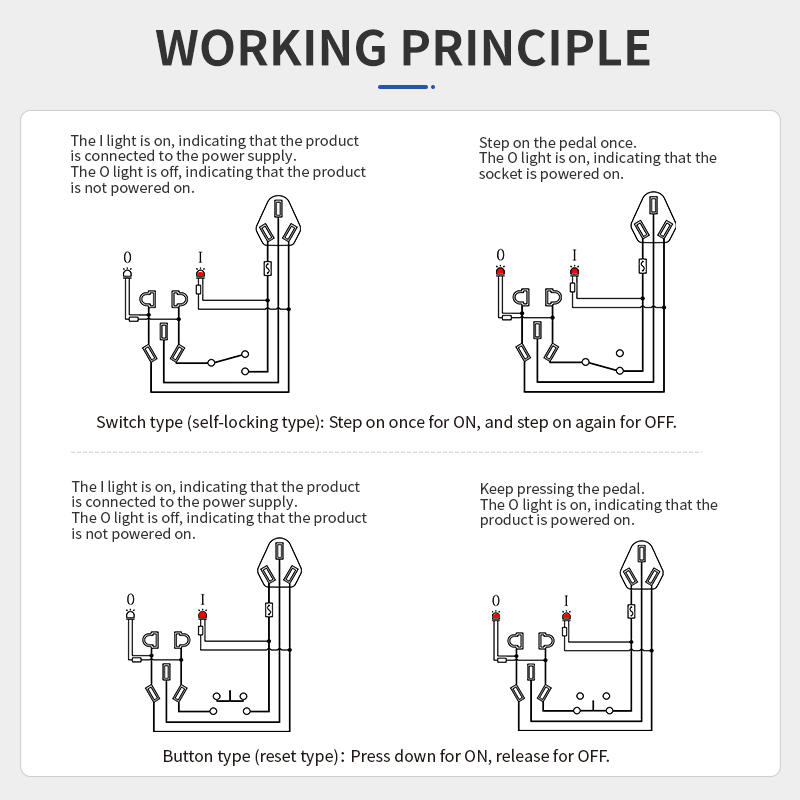

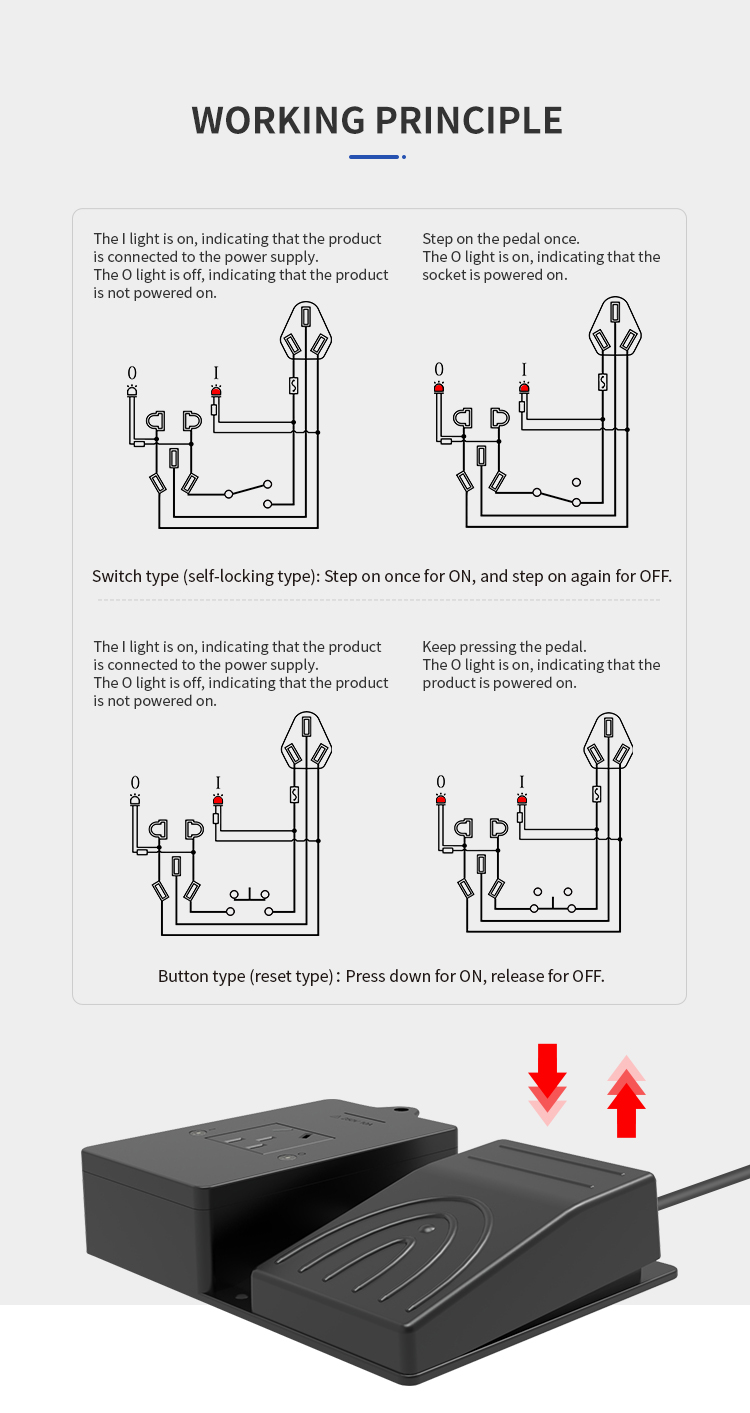

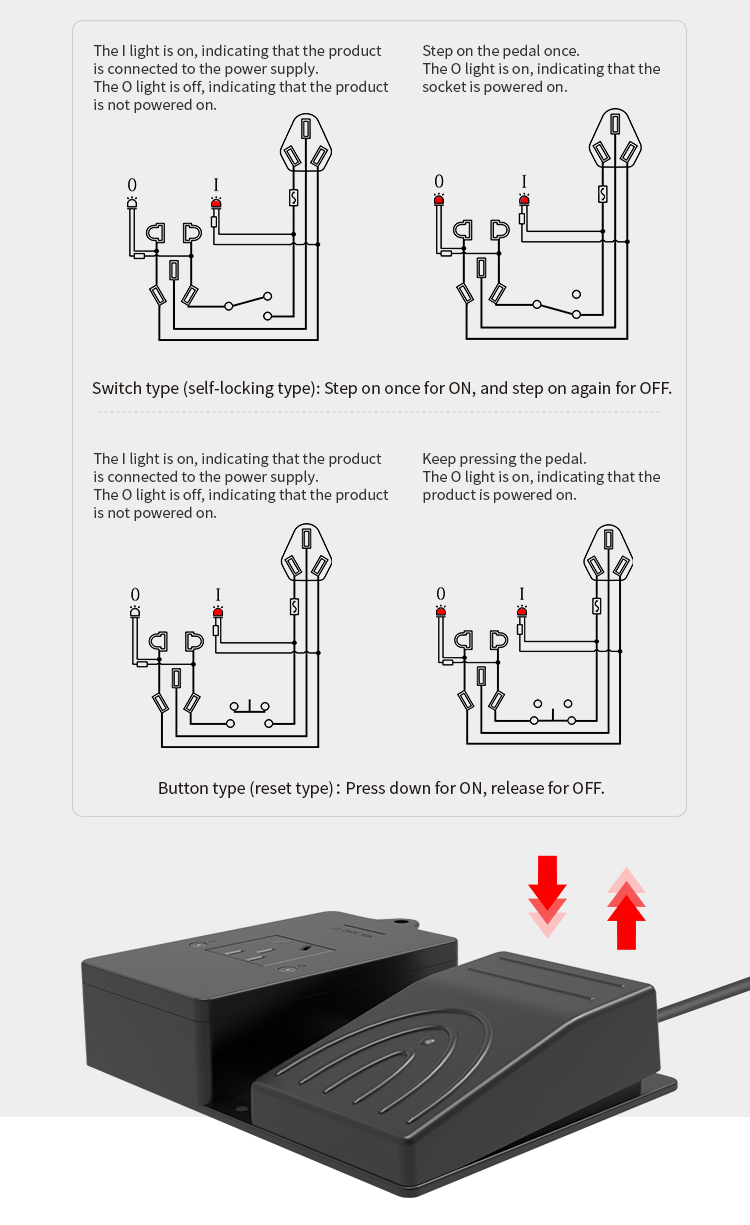

3. Working Principle
4. Application Scenarios
5. Product Functions

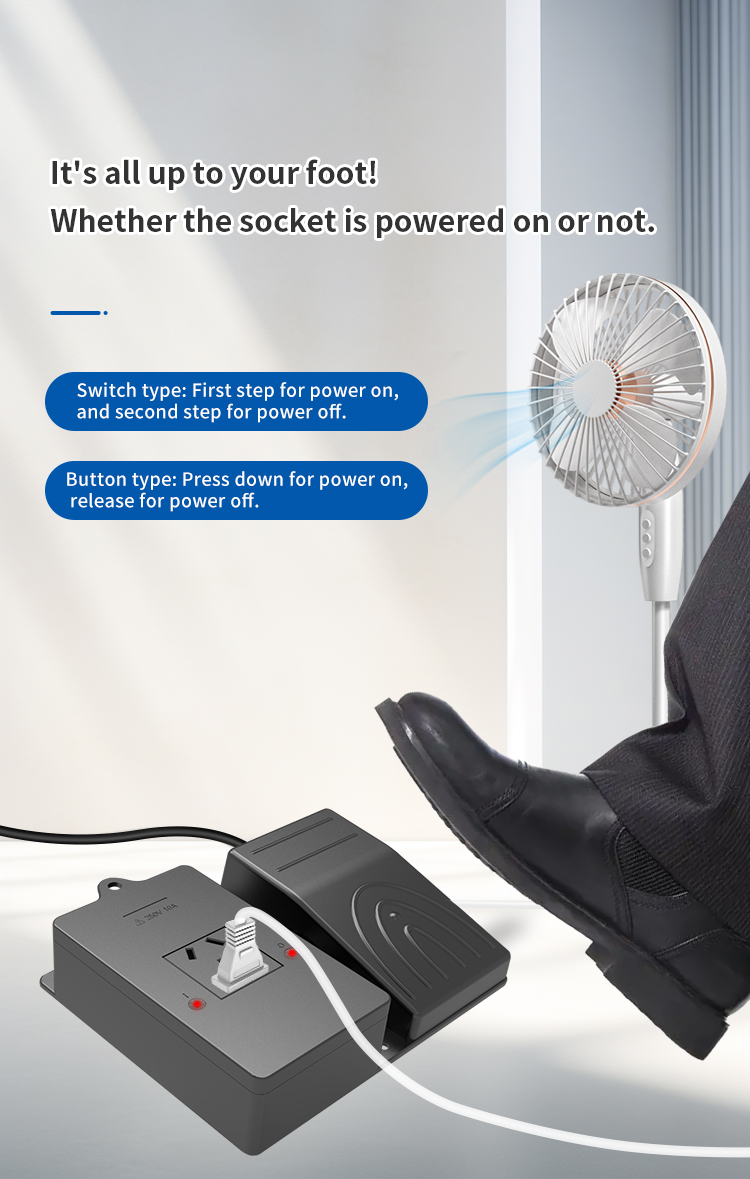

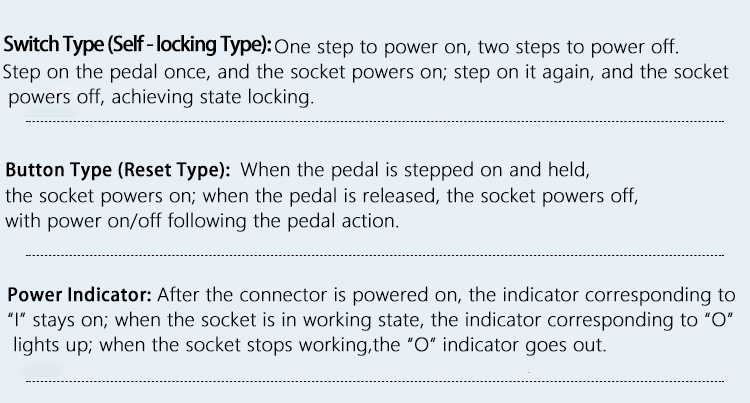

Switch Type (Self -locking Type): One step to power on, two steps to power off.Step on the pedal once, and the socket powers on; step on it again, and the socketpowers off, achieving state locking.
Button Type (Reset Type): When the pedal is stepped on and held,the socket powers on; when the pedal is released, the socket powers off,with power on/off following the pedal action.
Power Indicator: After the connector is powered on, the indicator corresponding to"I" stays on; when the socket is in working state, the indicator corresponding to "O"lights up; when the socket stops working,the "O" indicator goes out.

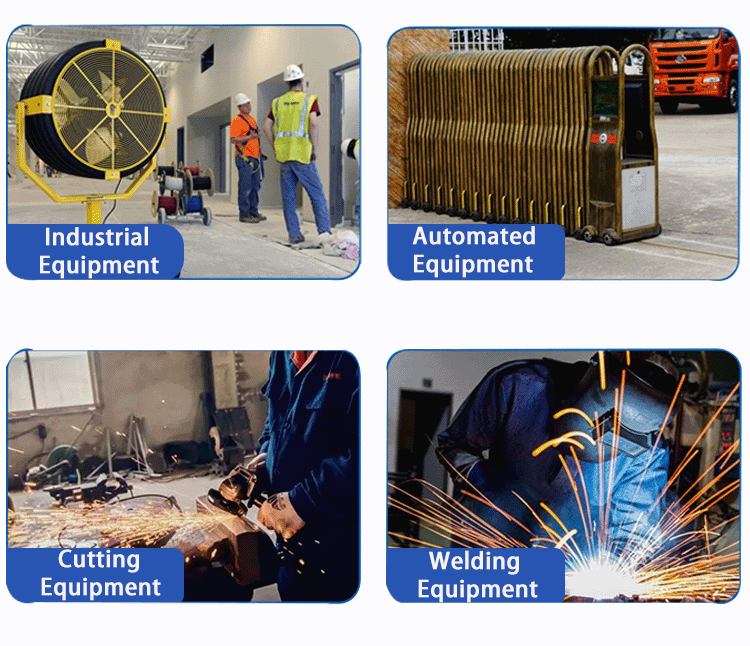

6. Application Fields

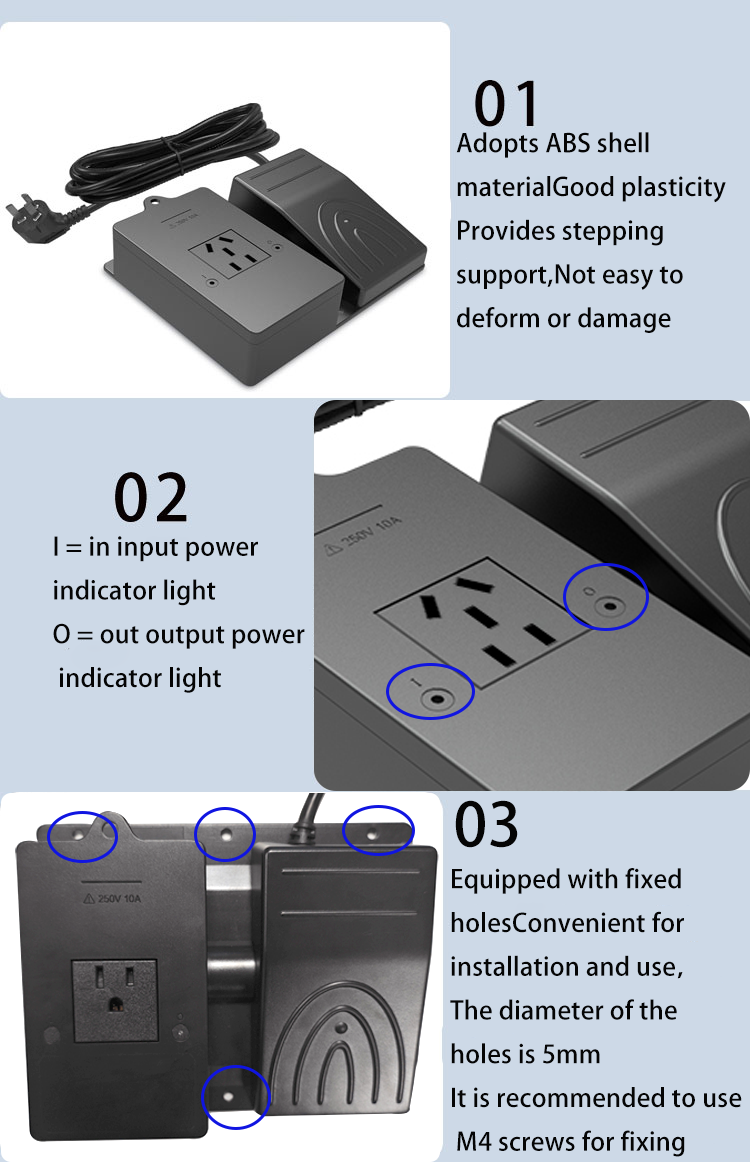

7. Details Display
01
Adopts ABS shellmaterial
Good plasticity
Provides steppingsupport,
Not easy todeform or damage
02
I = in input power
Plug it in: Light I turns on;
O= out output power
Press the pedal:
Light O turns on
03
Equipped with fixedholes
Convenient forinstallation and use,
The diameter of the holes is 5mm
It is recommended to use M4 screws for fixing
04

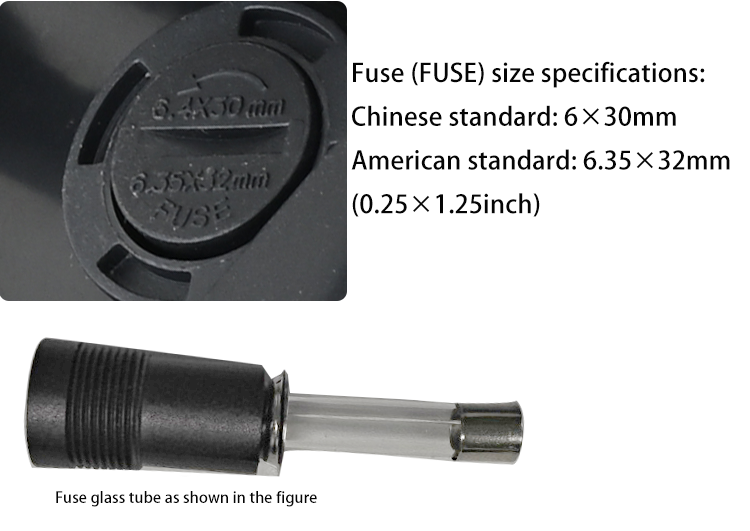

FUSE size specifications:
Chinese standard:6x30mm
American standard: 6.35 X32mm

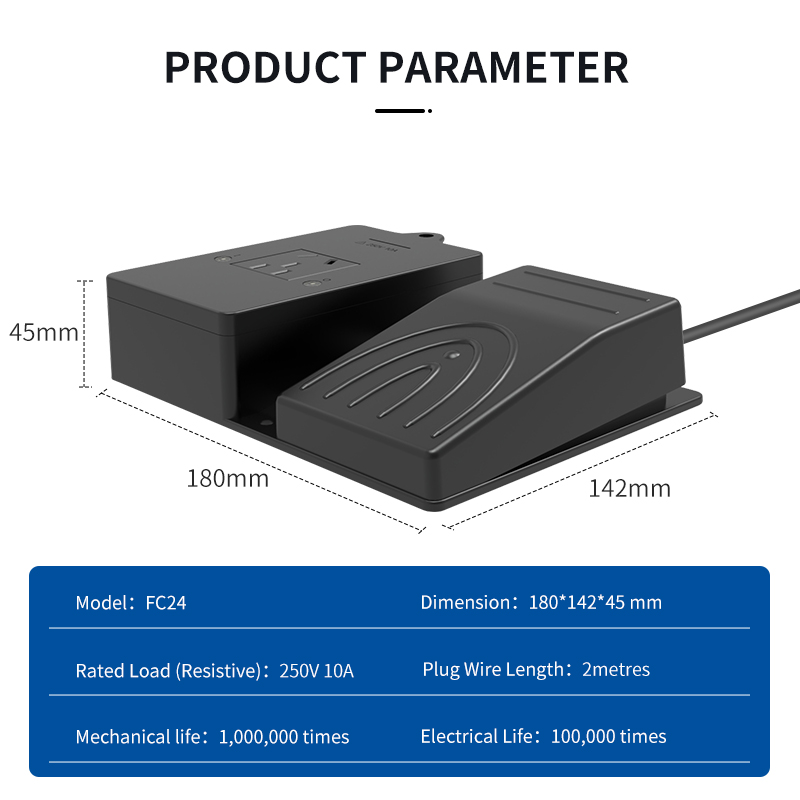

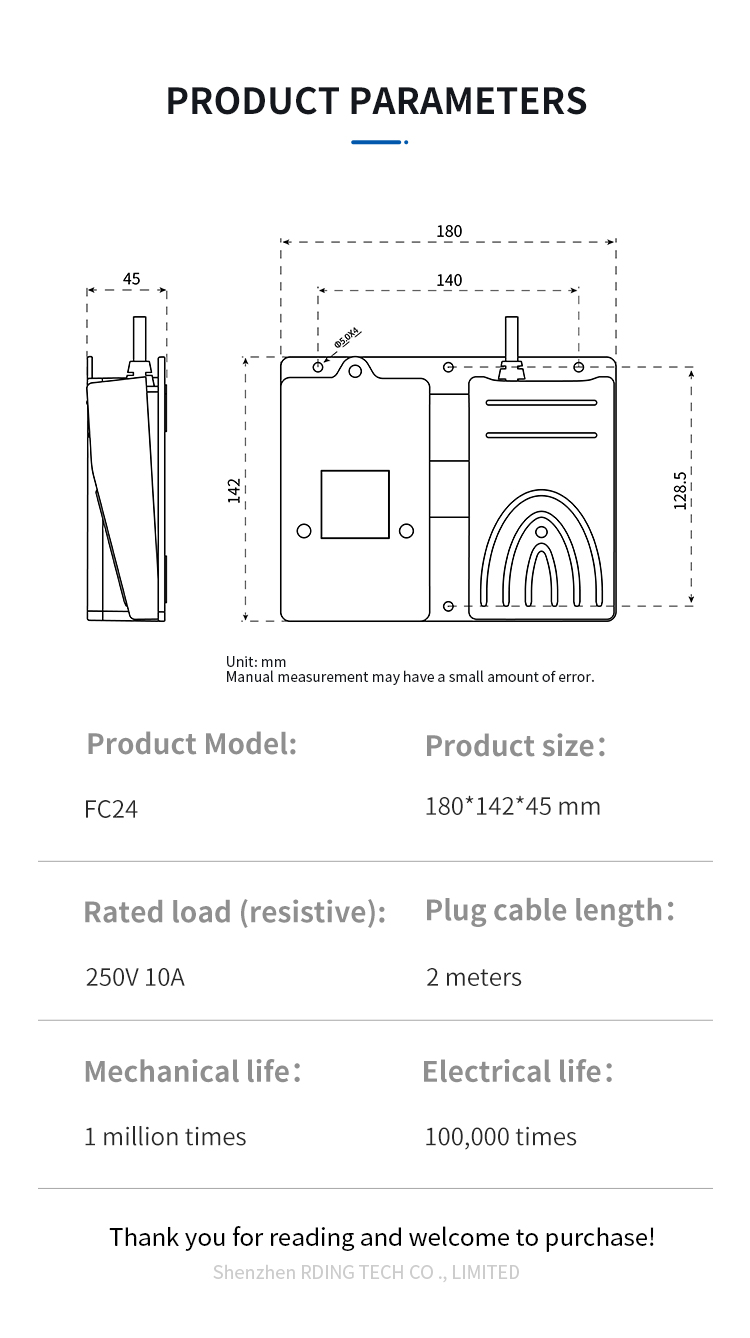

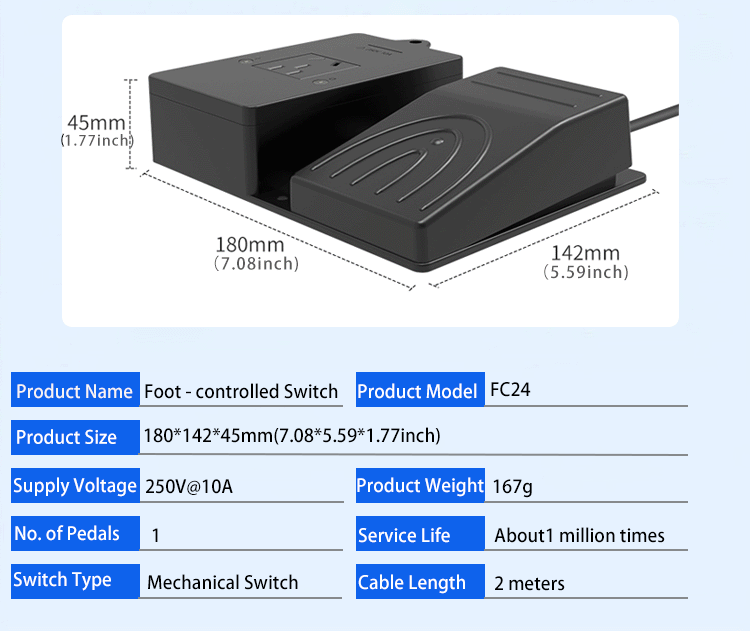

8. Product Parameters
9. Product Packaging

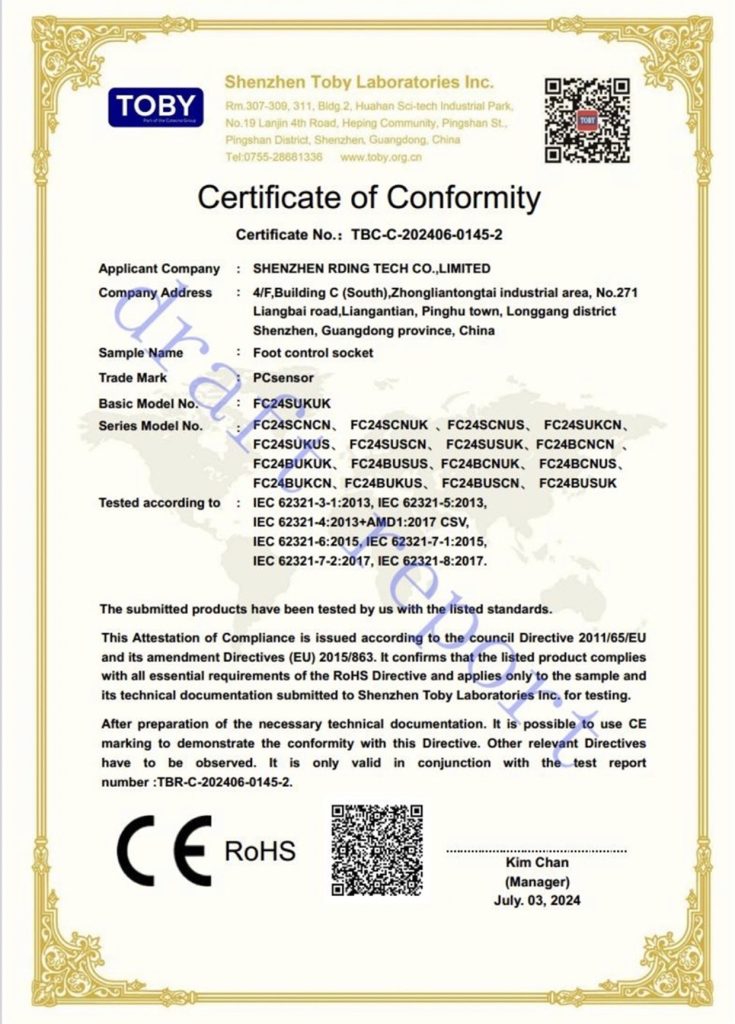

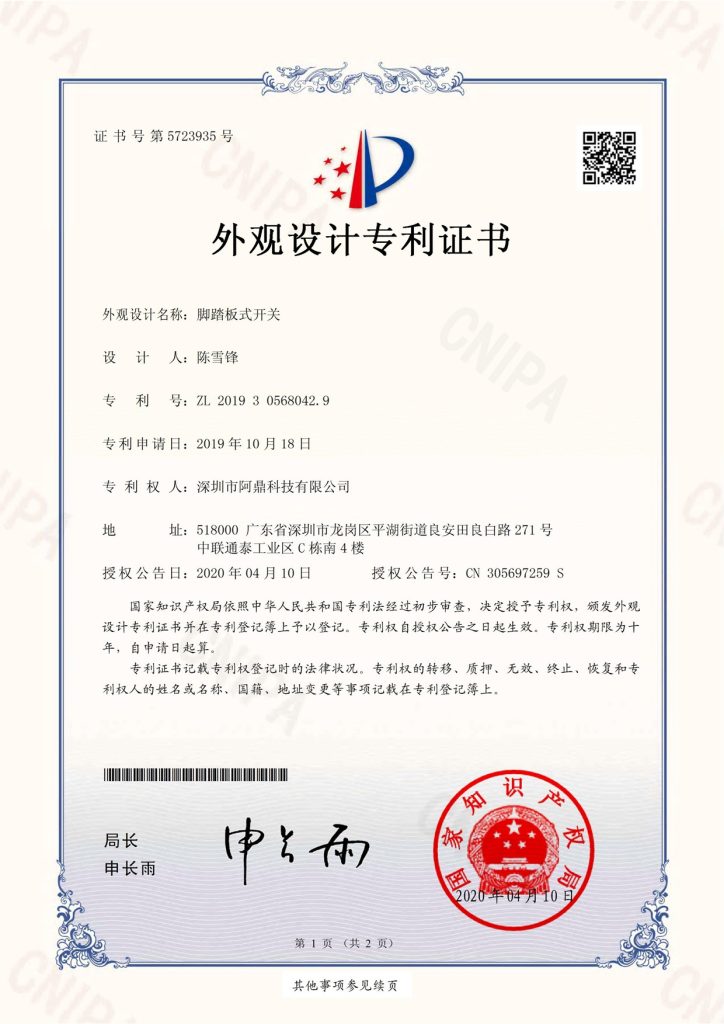

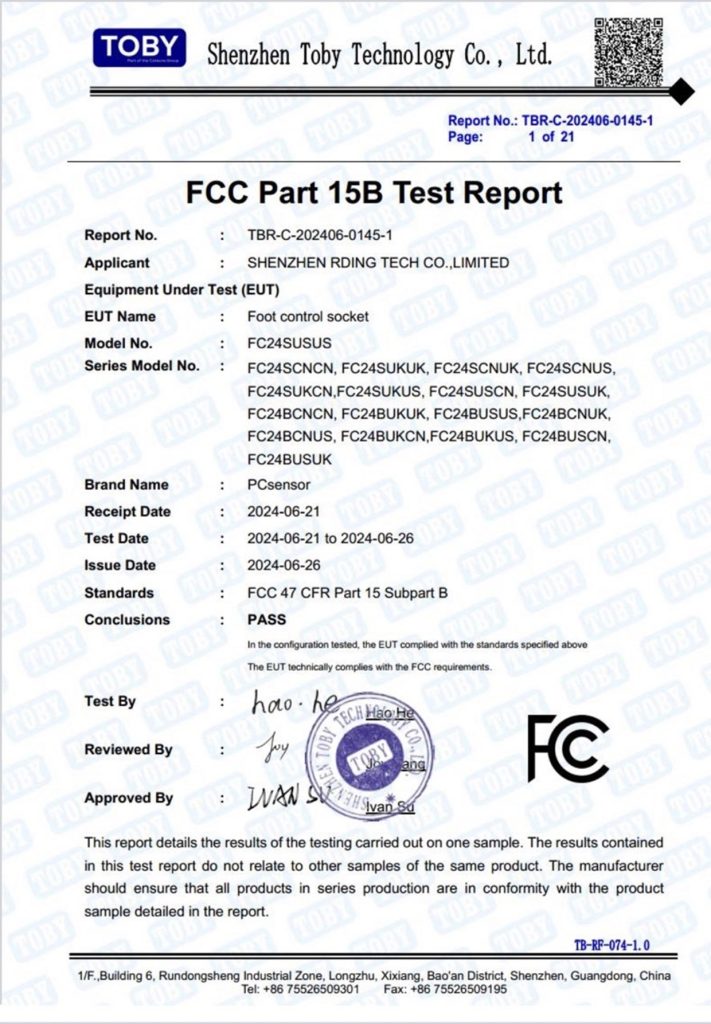

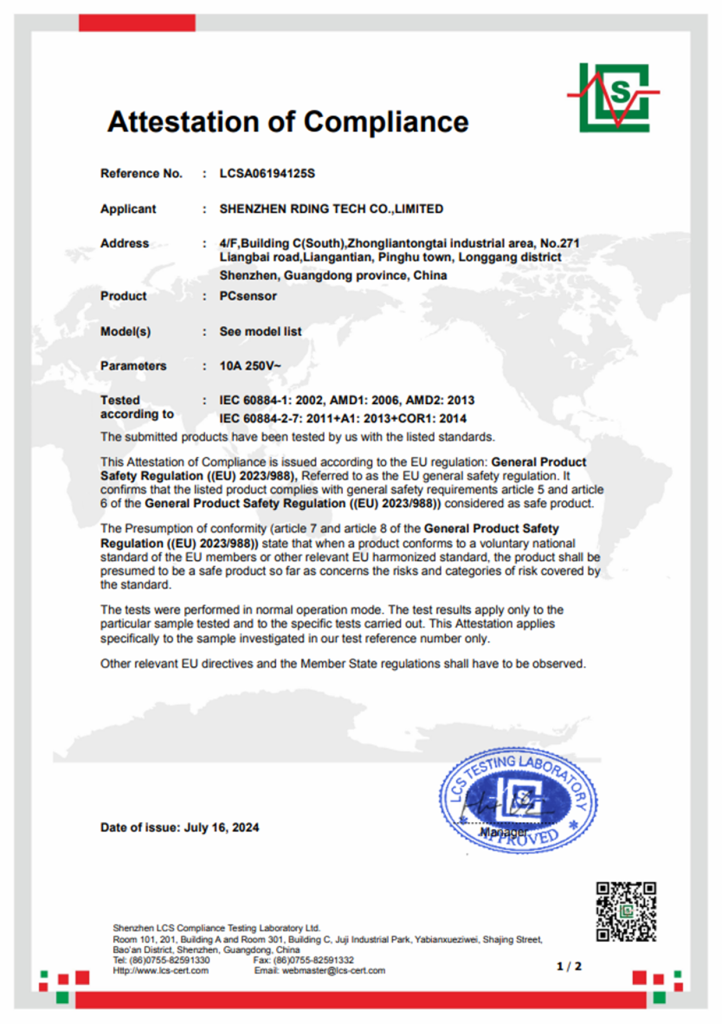

10. Product Certificate
update time：2026.09.11
