PCsensor isolated Thermocouple thermometer K type Thermocouple probe

Software download address:http://store.pcsensor.com/Software-details?article_id=146

TH2018KD is a real-time isolated thermocouple thermometer, making full use of the hardware resources of mobile phone and computer, which used with mobile phone or computer. With exquisite appearance and Standard K type thermocouple probe ,the temperature range of this product is 0~1024℃. In addition,the product is equipped with a temperature-measuring chip, temperature range is -40℃~125℃, which can monitor the internal temperature when the product is running.

If the temperature range to be measured is wide, please use our wide range type thermocouple meter
If your probe is plug type, please chose our plug-in thermocouple meter.

Non-isolated thermocouple meter
	USB Type A	Android	Relay	Port	Temperature Range
TH2018KA	√	×	×		0~1024ºC
TH2018KB	√	√	×		0~1024ºC
TH2018KC	√	√	√		0~1024ºC
TH2018KF	√	√	√		-200~700ºC

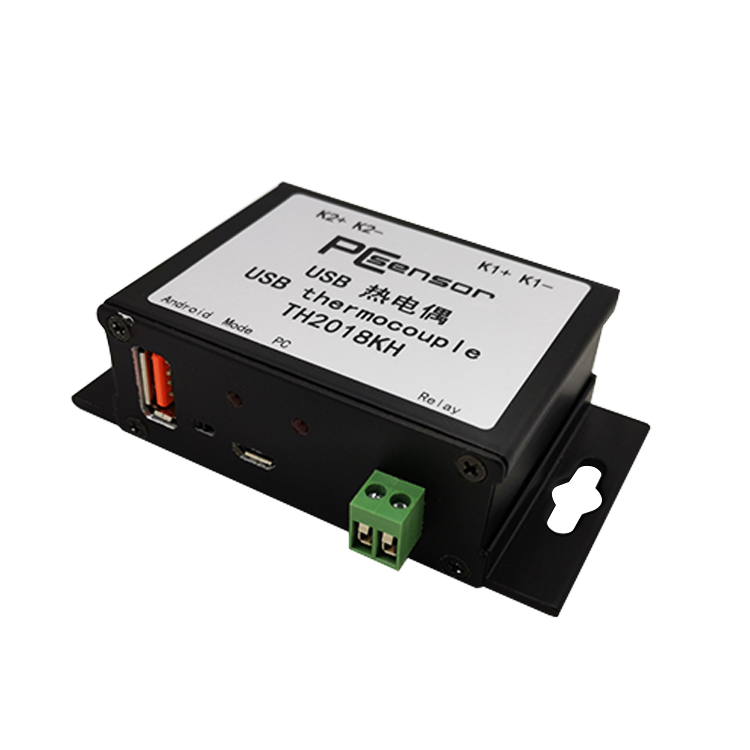

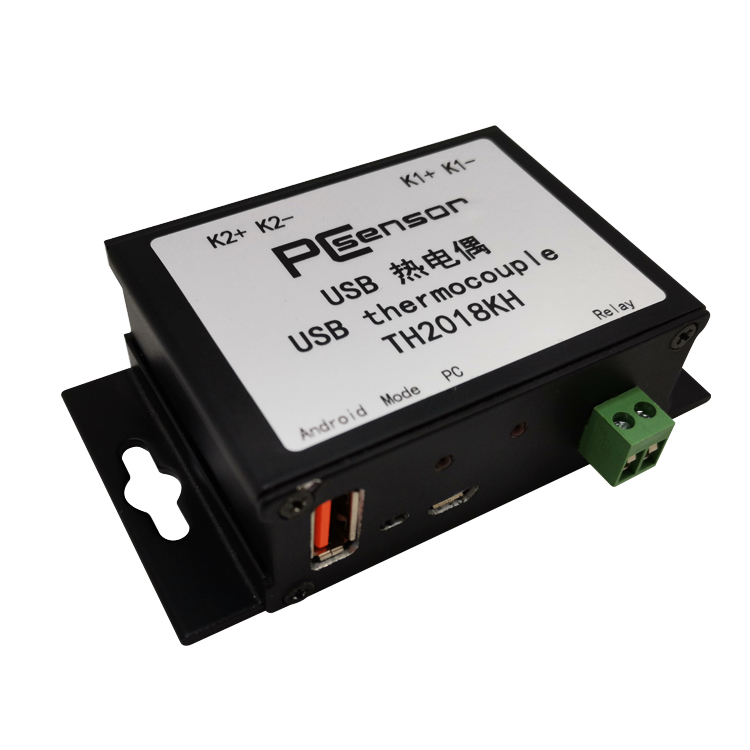

TH2018KH	√	√	√		0~+1024ºC

Isolated thermocouple meter
	USB Type A	Android	Relay	Port	Temperature Range
TH2018KD	√	√	√		0~1024ºC
TH2018KK	√	√	√		0~1024ºC
TH2018KG	√	√	√		-200~700ºC

a)USB Port: Using USB port, the device communicates with the host computer.
b)Thermocouple Isolation: thermocouple probe circuit and internal circuit isolation, to avoid damage the computer when measure temperature of high voltage equipment.
c)Android : Supports Android APP for monitoring (only single-mode operation is supported, and Micro USB Port is used as power in mobile mode)
d)Relay: It can be connected to external boilers, motors and other equipment to control the on/off of the equipment by judging the temperature.
e)Buzzer: When the temperature exceeds the threshold range, the buzzer will beep.
f)Outer measurement range:K-type thermocouple probe temperature measurement range

Software introduction
Real-time Temperature Measurement

View real-time temperature data via a computer connected device
Email alarm

Set the alarm threshold, set the send mode to be “Send mail when alarming”, then, through the mailbox SMTP service, the software will send an alarm email to the aim mailbox when the measured temperature exceeds the alarm temperature.
Remote data
Users can view data on a computer without a connected device by registering an account.
Data to file

The software automatically stores the measurement data as a file. The user can set the file type and storage path.
Product features
a)Support COM port mode, free to provide secondary development instruction text and instructions.
b)The device uses a metal shell, which can well shield external interference, batch order can be printed LOGO.
c)Two-way plug-in design, easy to plug and replace the probe.
d) The device has two modes: PC and mobile, providing Android App. Models that support mobile mode: TH2018KB, TH2018KC, TH2018KD, TH2018KF, TH2018KG, TH2018KH, TH2018KJ
e) Provide Windows-based driver, and provide Windows supporting software, support data storage, set alarm threshold, automatically send alarm mail, curve display and other functions.
